Description

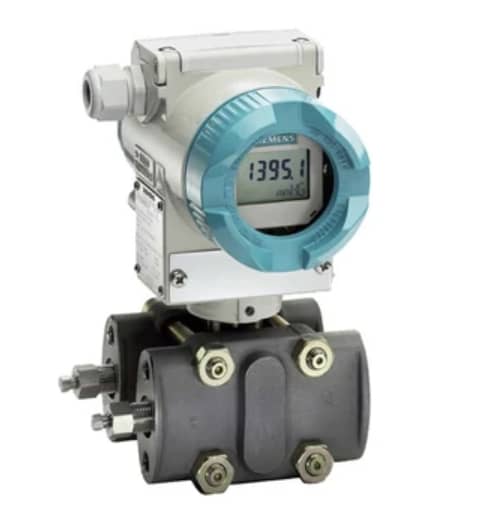

SITRANS P DS III / P410, HART, 4-20 mA transmitter for differential pressure and flow PN 32/160 gas 1/liquids
Measuring cell filling silicone normal cleaning Span: PN 160 (MWP 2320 psi):
5 to 250 mbar (1.004 to 100.4 inH2O), max. static pressure 160 bar Diaphragm stainless steel parts of measuring cell stainless steel
Process connection: 1/4-18 npt mounting thread: M10 Die-cast aluminium housing, process flange bolts stainless steel
None explosion protection
Electric connection and cable inlet: cable gland M20 x1.5
Housing cover with window (setting: mA)
With steel mounting bracket
